Project Status: This architecture post is complete. Implementation code and a link to the full GitHub repo will be added upon project completion. The tool comparisons, architecture walkthrough, and code patterns are ready to use as a reference now.

Stack at a Glance

The Problem With Traditional OLTP-to-OLAP Pipelines

Most data stacks have a gap between the transactional database and the analytics warehouse. Your application writes to Postgres, and separately, an ETL job extracts that data, transforms it, and loads it into Snowflake. This works, but it comes with real costs:

• Latency — your analytics are always behind by however often the ETL runs
• Cost — you’re paying to store the same data twice (Postgres + Snowflake)
• Complexity — you now have pipeline infrastructure to maintain, monitor, and debug
• Drift — subtle differences between extraction logic and source data cause inconsistencies

If you’ve read my Real-Time Banking CDC Pipeline post, you know I’ve built the Kafka + Debezium version of this pattern. This post is the other side of that coin — what the same CDC problem looks like when you stay entirely within the Snowflake ecosystem and trade operational complexity for managed simplicity.

The lakehouse pattern attempts to solve the duplication problem by using a single open data layer — Apache Iceberg on object storage — that both OLTP and OLAP systems can read from directly. The challenge has always been: how do you get a transactional database like Postgres to write to Iceberg natively?

This is exactly what pg_lake solves.

Cost Note: The Snowflake Connector for PostgreSQL bills per table replicated and can accumulate credits quickly at the default sync frequency of every 5 minutes. If you’re following along, immediately run CALL ENABLE_SCHEDULED_REPLICATION('PSQLDS1', '360 MINUTE') to set 6-hour syncs during development, and monitor your credit usage in Snowsight closely.

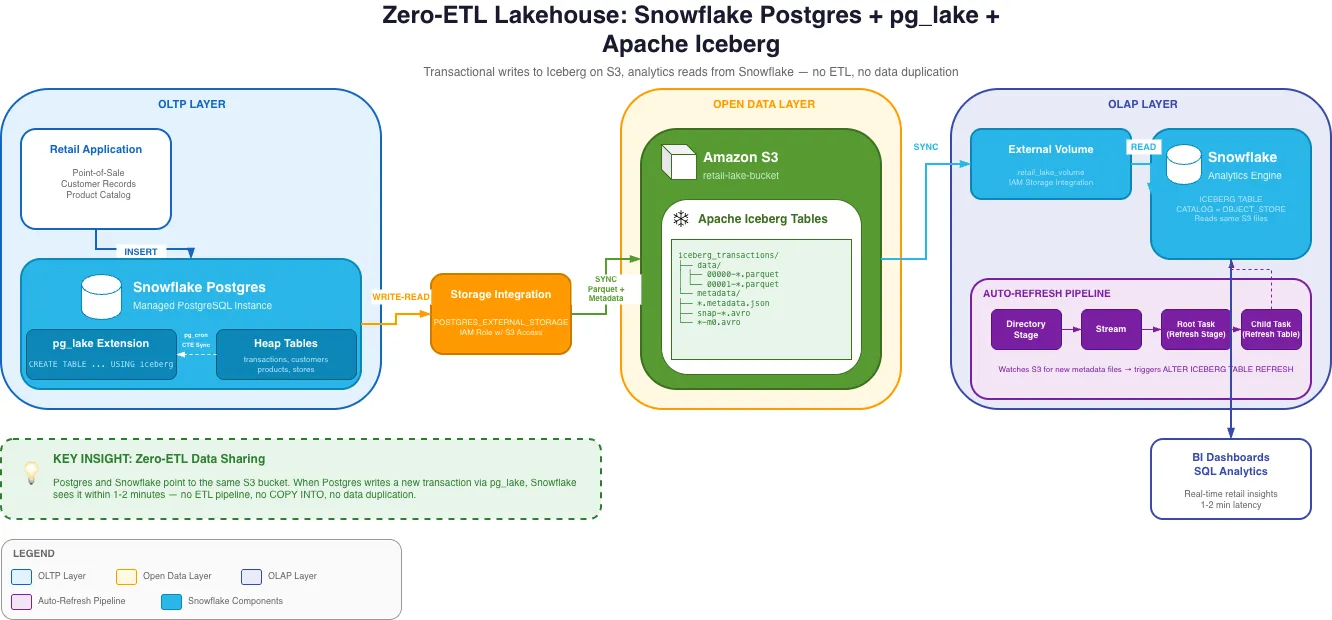

What We’re Building

A retail transaction system where:

• Snowflake Postgres handles all transactional writes (point-of-sale data, customer records, product catalog)
• pg_lake (a Postgres extension) writes that data as Apache Iceberg tables on S3 automatically
• Snowflake reads those exact same Iceberg files for analytics — no data movement, no ETL

The key insight: Postgres and Snowflake are both pointing at the same S3 bucket. There is no ETL step in between. When Postgres writes a new transaction, Snowflake sees it within 1-2 minutes without any pipeline running.

Architecture Deep Dive

Layer 1: Snowflake Postgres + pg_lake

Snowflake Postgres is a managed PostgreSQL instance that runs inside the Snowflake platform. It’s fully compatible with standard Postgres, so existing Postgres drivers, ORMs, and tools work without modification.

pg_lake is a Postgres extension that adds a new table type: USING iceberg. When you create a table with this syntax, every write to that table is automatically serialized as Parquet files in Iceberg format on S3. The extension handles the Iceberg metadata — manifest files, snapshot tracking — so that the S3 data is always in a valid, queryable Iceberg state.

-- Standard Postgres heap table (fast transactional writes)
CREATE TABLE transactions (
    txn_id         SERIAL PRIMARY KEY,
    store_id       INT NOT NULL,
    customer_id    INT,
    total_amount   NUMERIC(12,2),
    synced_at      TIMESTAMP
);

-- pg_lake Iceberg table (writes Parquet directly to S3)
CREATE TABLE iceberg_transactions (
    txn_id         INT,
    store_id       INT,
    customer_id    INT,
    total_amount   NUMERIC(12,2),
    synced_at      TIMESTAMP
) USING iceberg;

The architecture uses two table types in tandem. The heap table handles fast transactional writes. A pg_cron job then syncs unprocessed rows to the Iceberg table using an atomic CTE pattern:

-- Atomic sync: insert new rows to Iceberg, mark as synced — all in one statement
WITH synced AS (
    INSERT INTO iceberg_transactions
    SELECT txn_id, store_id, customer_id, total_amount, now()
    FROM transactions WHERE synced_at IS NULL
    RETURNING txn_id
)
UPDATE transactions
SET synced_at = now()
WHERE txn_id IN (SELECT txn_id FROM synced);

This CTE pattern is important — it ensures rows are never double-synced and the sync remains atomic even if interrupted halfway through.

Layer 2: AWS S3 + IAM

S3 is the neutral ground between Postgres and Snowflake. Both access it through the same IAM role, configured to trust multiple Snowflake principals. One gotcha: Snowflake requires a separate storage integration for the Postgres instance (POSTGRES_EXTERNAL_STORAGE) and another for the Snowflake query engine (EXTERNAL_STAGE). The IAM trust policy ends up needing to allow three separate IAM user ARNs — one for pg_lake writes, one for the external volume reads, and one for directory stage refreshes. Missing any one of these causes silent failures that are frustrating to debug.

Layer 3: Snowflake Iceberg Tables + Auto-Refresh

On the Snowflake side, you create Iceberg tables pointing to the same S3 metadata files pg_lake writes. Since pg_lake manages the Iceberg catalog, not Snowflake, you use CATALOG = OBJECT_STORE — Snowflake reads Iceberg metadata directly from S3 rather than from Glue or its own catalog.

CREATE OR REPLACE ICEBERG TABLE iceberg_transactions
  EXTERNAL_VOLUME = 'retail_lake_volume'
  CATALOG = 'pg_lake_catalog'
  METADATA_FILE_PATH = 'frompg/tables/postgres/public/iceberg_transactions/<OID>/metadata/<FILE>.metadata.json';

Because AUTO_REFRESH only works with external catalogs (not OBJECT_STORE), you build a refresh pipeline using Snowflake-native components:

Directory Stage → Stream → Root Task (refresh stage) → Child Task (refresh Iceberg table)

The directory stage watches the S3 metadata folder for new files. The stream detects when new files appear. The task chain fires when the stream has data, calling a stored procedure that finds the latest metadata file and runs ALTER ICEBERG TABLE ... REFRESH. This gives you near-real-time refresh without polling on a fixed schedule.

What pg_lake Teaches You About Iceberg Internals

One of the most educational parts of this project was seeing how Iceberg works under the hood, because pg_lake makes the metadata structure visible on S3:

s3://your-bucket/frompg/tables/postgres/public/iceberg_transactions/<OID>/
  ├── data/
  │   ├── 00000-<uuid>.parquet    ← actual row data
  │   └── 00001-<uuid>.parquet
  └── metadata/
      ├── 00000-<uuid>.metadata.json   ← table snapshot
      ├── snap-<id>-<uuid>.avro        ← manifest list
      └── <uuid>-m0.avro               ← manifest file

Every write creates a new snapshot — a point-in-time view of which data files are valid. The metadata JSON file points to a manifest list, which points to manifest files, which point to the actual Parquet data files. This chain is what enables time travel and atomic operations. Understanding this structure explains exactly why the Snowflake auto-refresh works the way it does: it’s just reading the latest .metadata.json file and following the chain down to the Parquet.

Tool Comparison: pg_lake vs. Kafka + Debezium CDC

I’ve built both approaches, so this comparison comes from direct experience rather than just reading the docs.

The honest tradeoff is latency vs. operational flexibility. If you need sub-second freshness — fraud detection, real-time dashboards — Kafka + Debezium is still the right answer. If 1-2 minute freshness works for your analytics and you want to minimize operational overhead, the pg_lake approach is significantly simpler to run in production.

The underrated advantage of pg_lake: Iceberg is truly open. If you later want to query that same data from Trino, Spark, or DuckDB, you can — without moving data again. Most Kafka CDC sink pipelines write to Snowflake-proprietary storage, which means you’d need another ETL step to use any other engine.

Tool Comparison: Snowflake Postgres vs. Standard RDS Postgres

Worth clarifying what Snowflake Postgres is and isn’t:

If you’re already using Snowflake as your analytics warehouse, Snowflake Postgres + pg_lake is a compelling way to eliminate the ETL layer for transactional data. If you’re not on Snowflake, the traditional approach — RDS + Debezium + Kafka — is still the standard.

What I’d Do Differently

Use Snowpipe for the auto-refresh instead of tasks. Snowpipe can be triggered by S3 event notifications, making the refresh truly event-driven rather than polling-based. This would reduce the 1-2 minute lag significantly for high-write-volume tables.

Separate the IAM roles for read and write. The current setup uses a single IAM role for both pg_lake writes and Snowflake reads. In production these should be separate roles, following the principle of least privilege.

Add a schema compatibility check before refresh. When pg_lake writes a new Iceberg snapshot after a schema change in Postgres, Snowflake needs to refresh with updated metadata. Without a check, schema changes can cause silent query failures on the Snowflake side.

Key Takeaways

Zero-ETL is real, but has tradeoffs. Eliminating the ETL pipeline means accepting managed infrastructure and slightly higher latency than Kafka-based CDC. For most analytics use cases, that tradeoff is worth it.

Iceberg’s metadata structure is what makes this work. Because Iceberg is a self-describing open format, any engine that understands the spec can read it — no proprietary format negotiation. This is why pg_lake (Postgres) and Snowflake can share the same files without any middleware.

Snowflake Tasks are underrated. The auto-refresh pipeline — directory stages, streams, tasks — is entirely serverless, with no Airflow, no Lambda, no external scheduler. For Snowflake-native workflows, this is the right tool for lightweight orchestration.

Resources

• Snowflake Developer Guide: Build a Lakehouse with pg_lake
• pg_lake Documentation
• Apache Iceberg Table Spec
• Snowflake Iceberg Tables
• Snowflake Streams documentation
